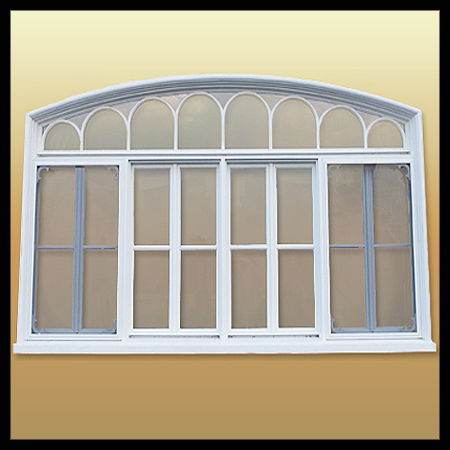

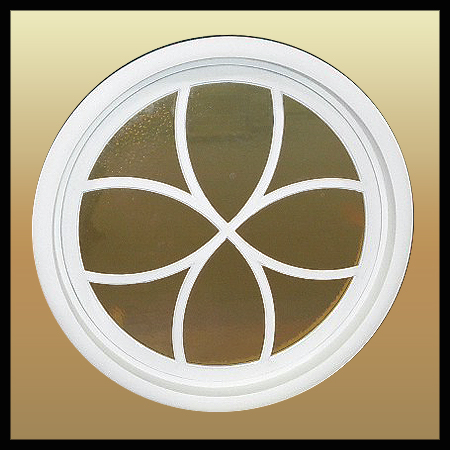

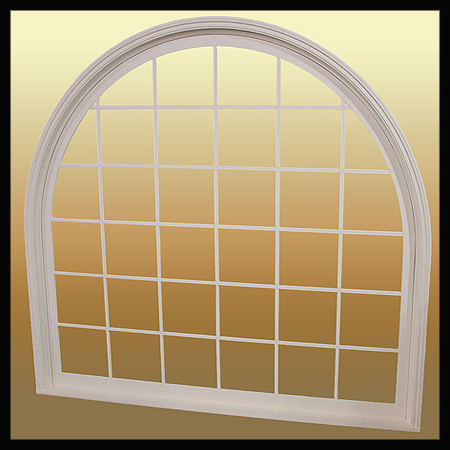

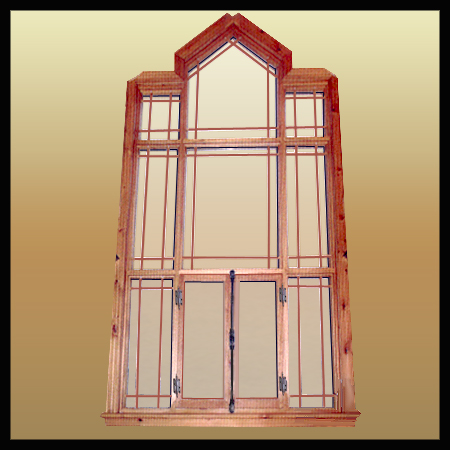

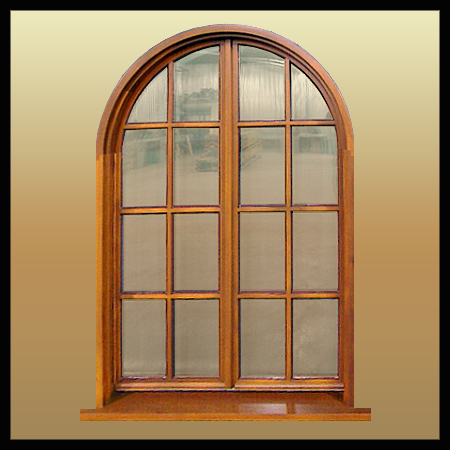

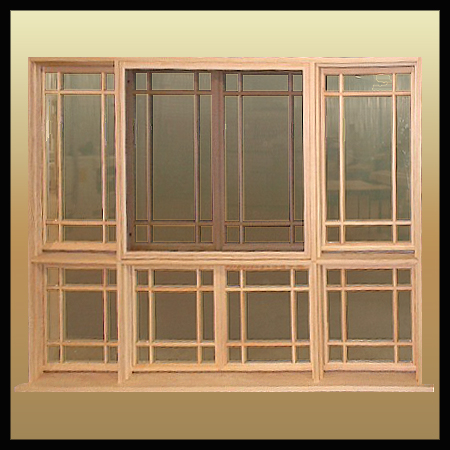

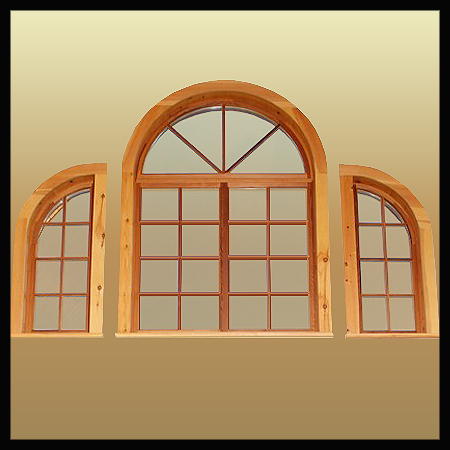

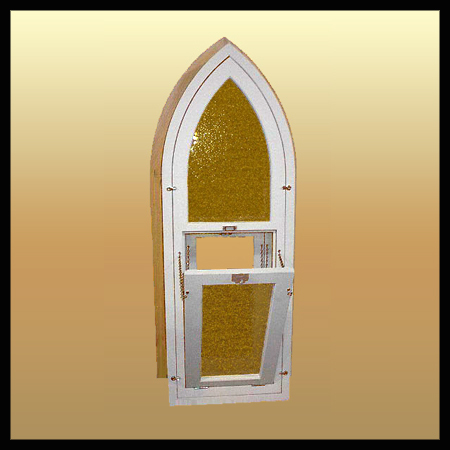

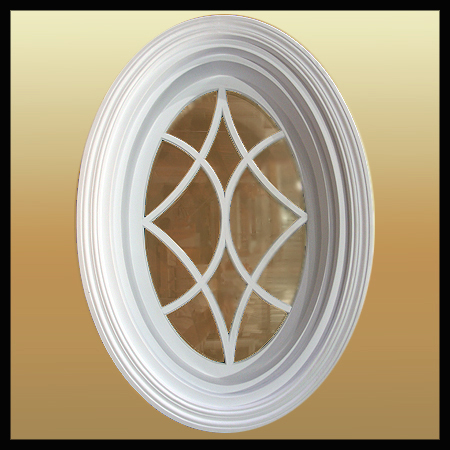

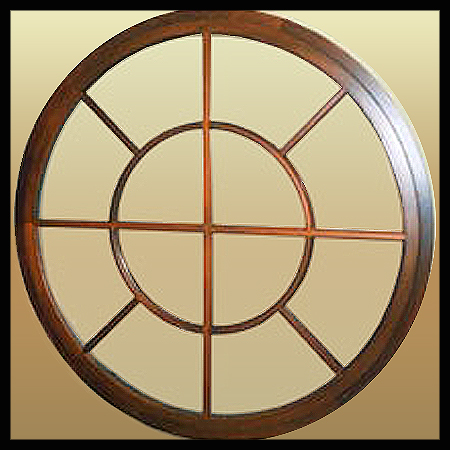

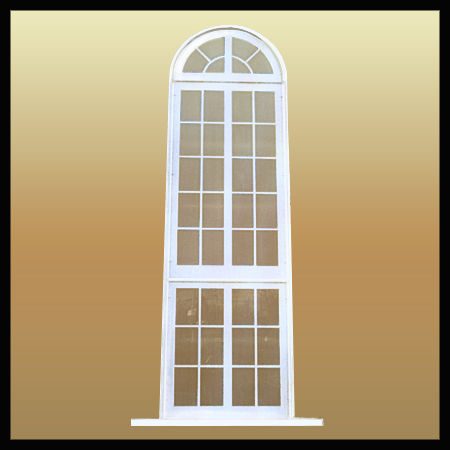

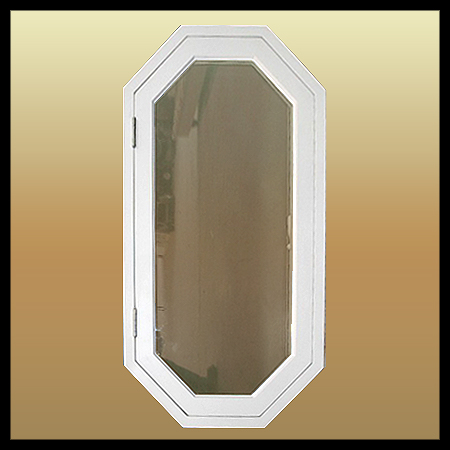

Unique custom architectural windows offer the possibility to let your imagination run wild. Design an extraordinary window with any geometric shape or original profile that will match the architecture of your home. All you need to do is choose one of our existing products that we will custom make and customize to make your design unique and proud.
Solid Wood Construction
- Western Red Cedar, White Oak, Douglas Fir, African and Honduran Mahogany
- Solid wood only, no finger joints or veneer are used
Exterior Casing or Brickmold
- Available upon request in standard or custom sizes and profiles
- Interior casing is also available
Glass
- Factory glazed with single lite or with 3/4” double insulated glass units
- Low-E, Argon filled, tempered, laminated and historical glass available
- Other options available upon request
1 3/8″ X 5 1/2″ Jamb, Standard Size
- Solid wood frame
- Incredible strength, stability and durability
- Custom jamb depth available upon request
1 3/4″ or 2 1/4″ Sash
- Mortise and tenon construction
- Various weather-stripping system available
- High performance and classic lines
Muntins
- 7/8″ Simulated divided lite (SDL) and 1 ¼” True divided lite (TDL) options
- With choice of colors for perimeter and internal spacer bars
Hardware
- Varies, depending on the chosen window system
Screen (if operating)
- Aluminium frame screen with fibreglass mesh
- Wood frame screen with fibreglass, stainless steel or bronze mesh available upon request
- Roll-up screens available upon request on special orders
Don’t forget that our Architectural windows are all custom made. You can use your imagination and create your own design. We will be more than happy to satisfy your request.
Standard
 |
One insulated glass unit only. Consist of a 7/8” solid wood muntin applied on both sides (inside / outside) of the insulated glass unit with glazing tape.
Custom width and profiles are available upon request. |
SDL (Simulated Divided Lite)
 |
One insulated glass unit only. Consist of a 7/8” solid wood muntin applied on both sides (inside / outside) of the insulated glass unit with glazing tape.
An internal spacer bar aligned with the wood muntins give the appearance of the TDL. Custom width and profiles are available upon request. |
TDL (True Divided Lite)
 |
Multiple insulated glass units. Consist of a 1 1/4” solid wood muntin which divides the sash into multiple lites. Each lite get its own insulated glass unit. Custom width and profiles are available upon request. |
All our windows have to go through a rigorous process of testing and approvals. To pass the highest performance standards, Belisle’s products are tested, both in our R&D department and at an independent certified testing laboratory, under extreme weather simulations. All our products are rigorously tested for air and water infiltration as well as structural and energy performance.
Because we at Belisle are committed to receiving the best ratings, we are proud of the results from the many testing parties to which we submit our products – NFRC, Energy Star, or AAMA.
|
Air tightness
|
Varies, depending on the chosen window system
|
|
Water tightness
|
Varies, depending on the chosen window system
|
|
Wind load resistance
|
Varies, depending on the chosen window system
|
It is extremely important that you install our wood products within 30 days after receiving. We recommend that you install our windows and doors plumb, level and square, as the state of art. Prior to being installed, they must be kept into a heated and humidity controlled area. This is to prevent any damages that may occur if not stored properly. Wood is a living material and must be treated as such. Until you have closed the walls, you want to make sure that your windows and doors are well prepared for the tough life that they will have.
All surfaces must be painted or stained before installation. You should always take advantages of our unique paint shop. We can finish all our products piece by piece prior to assembly to give you the maximum protection and make you save time and money. You must also make sure that maintenance is done on a periodic schedule. The secret to keeping your wood products in pristine condition is to keep the finish on the wood surface in good condition and always follow the manufacturer’s recommendations.
The hardware should also be inspected periodically. Most of the hardware we supply can be easily cleaned with soap and water only. You should also lubricate the hardware with Petroleum Jelly or Lithium Grease.
It is also possible that you will see some condensation at the bottom of your new windows. Remember that they are far more energy efficient than the other used to be. To get rid of this modern phenomenon, you should look at reducing your humidity level inside the house.
